We will present the performance, safe operation methods, and technical parameters of JP outdoor integrated distribution box (compensation\controlerminal\lighting)

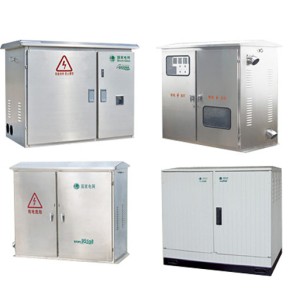

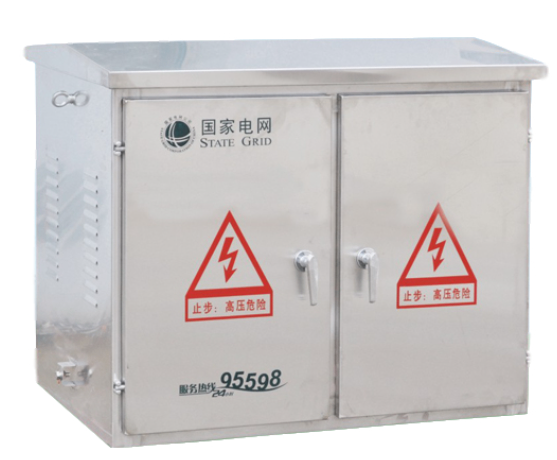

Product Overview:
JP series outdoor low-voltage integrated distribution box is a new type of integrated control box integrating power distribution, metering, protection, control and reactive power compensation, which is designed according to the requirements of power grid construction and transformation and power grid operation experience, in line with the principles of safety, economy, reasonableness and reliability, and can be added to the leakage protection function according to user requirements. The product has the advantages of novel structure, reasonable, high protection level, convenient installation and commissioning, maintenance and overhaul. It is an ideal terminal low-voltage complete set of equipment in the current power grid transformation.
1. Scope of application
JP series outdoor integrated distribution box, is a set of metering, outlet, reactive power compensation and other multi-functions in one to achieve outdoor comprehensive power distribution device, with short circuit, overload, overvoltage, leakage protection and other functions, small size, beautiful appearance, economical and practical, installed on the electric pole of the transformer on the outdoor pole, is a new generation of ideal power distribution products for the transformation of urban and rural power grids.
2. Model and meaning
JP - □ / □
└─ Main circuit scheme number
└─Transformer capacity
└─ Integrated distribution box
3. Normal conditions of use
1. Ambient temperature: -25°C~+40°C.
2. Air relative humidity: the daily average is not more than 90%, and the monthly average is not more than 90%.
3. Altitude: not more than 2000m.
4. Installed in a place without violent vibration and shock, and without corrosive gas.
Note: If the above conditions are exceeded, you can negotiate with my formula.
4. Technical parameters
serial number | name | unit | parameter |
1 | Transformer capacity | KVA | 30~400 |
2 | Rated operating voltage | V | AC400 |
3 | Auxiliary loop operating voltage | V | AC220，AC380 |
4 | Rated frequency | Hz | 50 |
5 | Rated current | A | ≤630 |
6 | Rated leakage acting current | mA | 30~300 adjustable |
7 | Protection level | IP54 |
5. Main circuit scheme diagram
Note: Knife switch or knife melt switch, the model can be HD11F, HR5, HR6 and other series;
Fuse, model optional D220, CM1, NS, C45, D247 and other systems;
AC contactor, signal optional CJ20, B series, CJX2, CJ19 (switching electrofusion) and other series;
zero-sequence transformer leakage current relay, model optional JD, LLJ and other series;
Current transformer, model optional LM21 - 0.5, LMK - 0.66 and other series;
Surge arresters, models are optional FYS, Y3W and other series;
Electric melter, model optional BSMJ, BCMJ and other series;
Automatic compensation controller, model optional JK1, JKG and other series;
The number of compensation loops is 1 - 4 times optional, and the capacity of each time is 3 - 20Kvar optional;
In addition, according to the needs of users, the temperature and humidity control device can be optionally installed in the box, and the compensation loop switching form can be cut and cut according to the user's requirements, such as non-contact module switching and compounding
Switch switching, etc.
6. Schematic diagram of the box structure

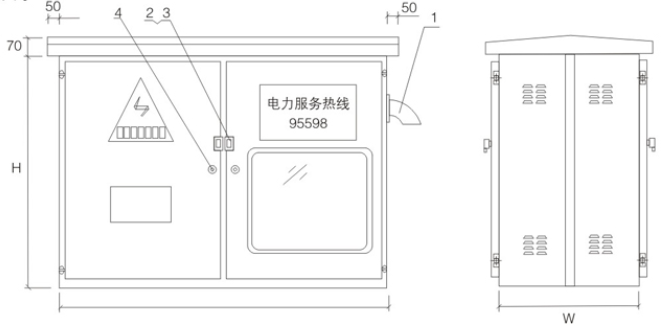

Horizontal cabinet form factor

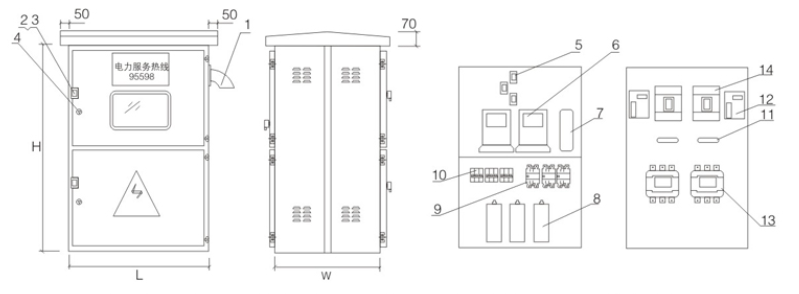

Vertical cabinet form factor
1. Inlet cable through pipe 2, door lock (open lock) 3, door lock rain box 4, door lock (hidden lock) 5, current transformer 6, meter 7, junction box 8, capacitor 9, switching fused contactor 10, small circuit breaker 11, isolation switch 12, zero sequence transformer 13, leakage current circuit breaker 14, outgoing AC contactor 15, outgoing air switch
